SN74ALS804AN
Texas Instruments
Texas Instruments

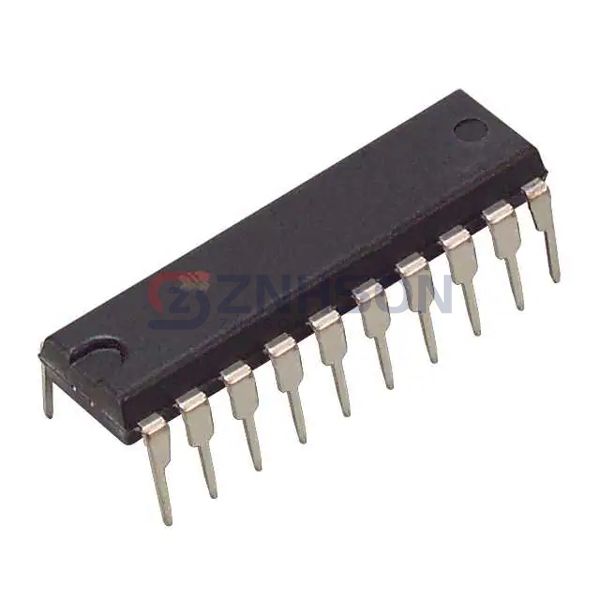

IC GATE NAND 6CH 2-INP 20DIP
$6.53
Available to order
Reference Price (USD)
1+
$6.16000
20+
$5.56400
40+
$5.30550
100+
$4.60660
500+
$4.01140
1,000+
$3.49380
2,500+
$3.36440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience reliable digital logic performance with Texas Instruments's SN74ALS804AN, a key component in our Logic - Gates and Inverters selection. This IC features buffered outputs for improved drive capability and reduced signal distortion. Technical highlights include 5ns maximum propagation delay and 24mA output drive at 5V. The SN74ALS804AN serves critical functions in computer architecture, including address decoding, bus interfacing, and memory control. Real-world applications encompass point-of-sale terminals, industrial HMI panels, and automotive dashboard electronics. With its moisture sensitivity level (MSL) rating of 1, this component is suitable for demanding production environments and extended storage periods.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 6
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): -
- Current - Output High, Low: 15mA, 24mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 8ns @ 5V, 50pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 20-PDIP
- Package / Case: 20-DIP (0.300", 7.62mm)
