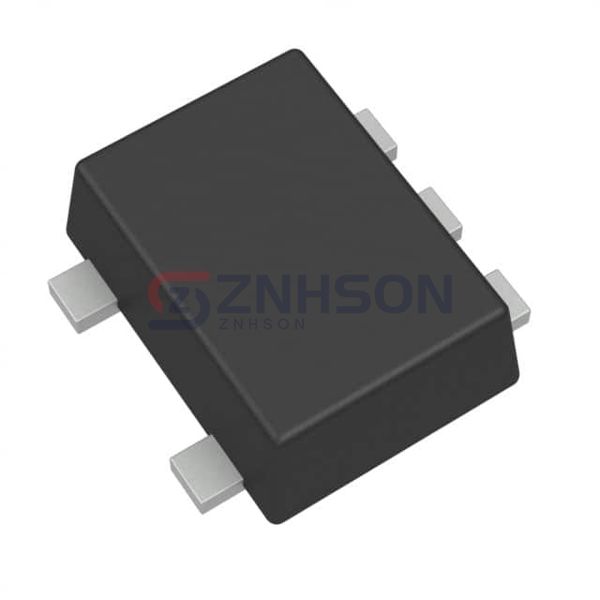

SN74AUC1G00DRLR
Texas Instruments
Texas Instruments
IC GATE NAND 1CH 2-INP SOT5
$0.19
Available to order
Reference Price (USD)
4,000+
$0.13260
8,000+
$0.12480
12,000+
$0.11700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74AUC1G00DRLR by Texas Instruments sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The SN74AUC1G00DRLR's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 0.8V ~ 2.7V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 9mA, 9mA
- Logic Level - Low: 0V ~ 0.7V
- Logic Level - High: 1.7V
- Max Propagation Delay @ V, Max CL: 2ns @ 2.5V, 30pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-5
- Package / Case: SOT-553
