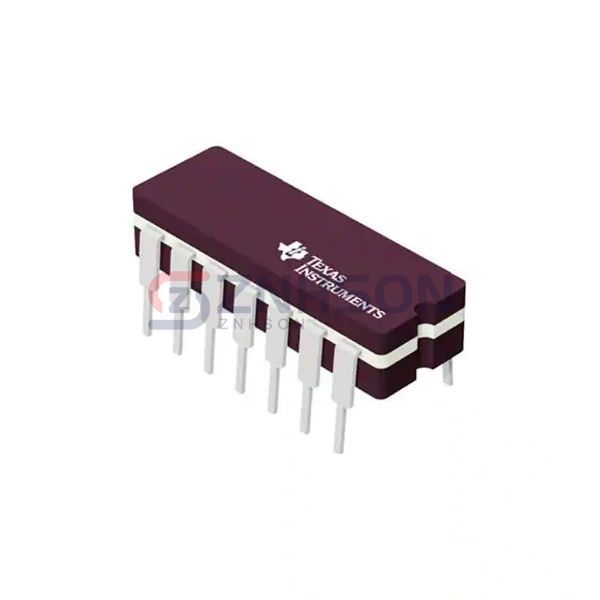

SN74HC08AN
Texas Instruments
Texas Instruments
QUAD 2-INPUT POSITIVE-AND GATES
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74HC08AN exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The SN74HC08AN is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Obsolete
- Logic Type: AND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 4mA, 4mA
- Logic Level - Low: 0.1V ~ 0.26V
- Logic Level - High: 1.9V ~ 5.9V
- Max Propagation Delay @ V, Max CL: 13ns @ 6V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
