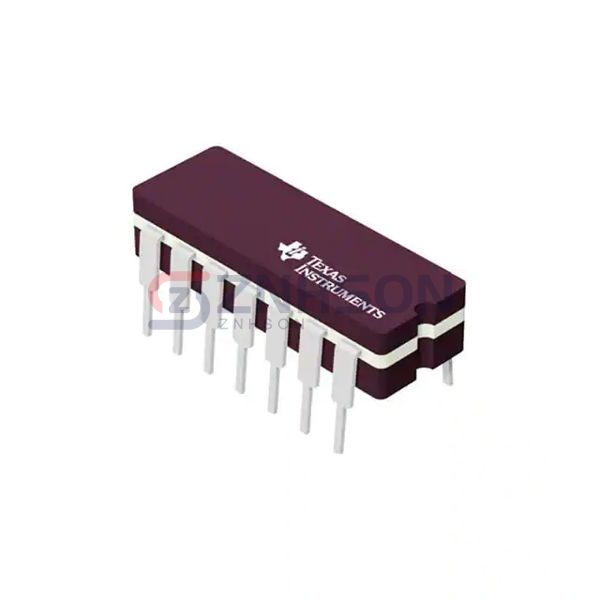

SN74LS09N
Texas Instruments
Texas Instruments
IC GATE AND OP COL 4CH 2IN 14DIP
$0.85
Available to order
Reference Price (USD)
1+
$0.98000
10+
$0.87900
25+
$0.83440
100+
$0.68540
500+
$0.56620
1,000+
$0.44700
2,500+
$0.41720
5,000+
$0.39634
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LS09N by Texas Instruments sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The SN74LS09N's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: AND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Open Collector
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): -
- Current - Output High, Low: -, 8mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 35ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
Related Products
Nexperia USA Inc.
74VHCT02PW,118
Texas Instruments
SN74LVC1GU04DRLR
National Semiconductor
54ALS30AW/883
Nexperia USA Inc.
74HC05PW-Q100,118
Diodes Incorporated
74AHC1G04QW5-7
Texas Instruments
SN7400D
NXP USA Inc.
HEF4001BP,652
Nexperia USA Inc.

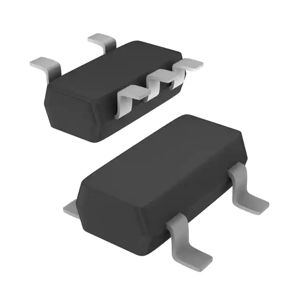

74HC1G04GV,125
