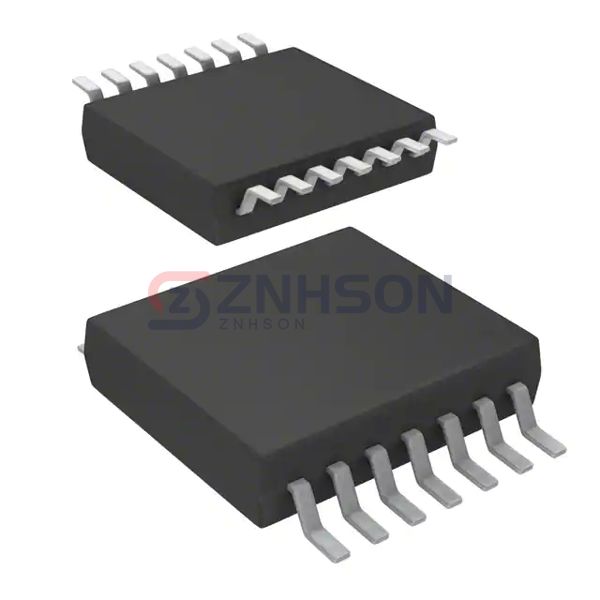

SN74LV10ADGVR
Texas Instruments
Texas Instruments
IC GATE NAND 3CH 3-INP 14TVSOP
$0.12
Available to order
Reference Price (USD)
1+
$0.12000
500+
$0.1188
1000+
$0.1176
1500+
$0.1164
2000+
$0.1152
2500+
$0.114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LV10ADGVR from Texas Instruments delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The SN74LV10ADGVR's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Obsolete
- Logic Type: NAND Gate
- Number of Circuits: 3
- Number of Inputs: 3
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 20 µA
- Current - Output High, Low: 12mA, 12mA
- Logic Level - Low: 0.5V
- Logic Level - High: 1.5V
- Max Propagation Delay @ V, Max CL: 7.9ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TVSOP
- Package / Case: 14-TFSOP (0.173", 4.40mm Width)
