SN74LV4053APWT
Texas Instruments
Texas Instruments

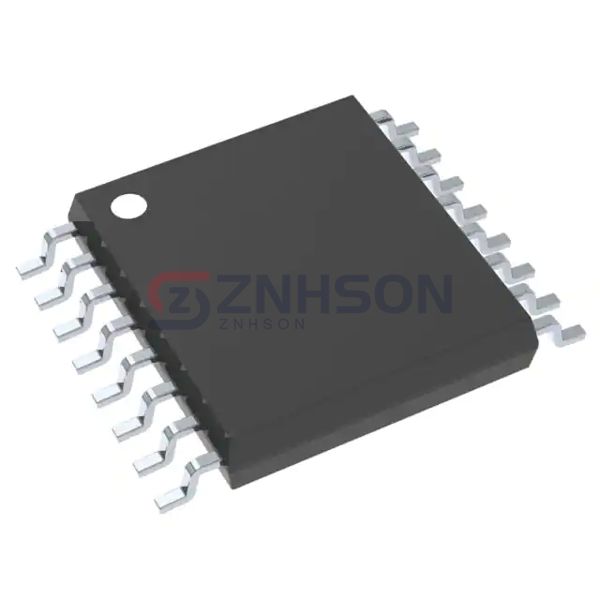

IC MUX/DEMUX TRIPLE 2X1 16TSSOP
$1.20
Available to order
Reference Price (USD)
1+
$1.20000
500+
$1.188
1000+
$1.176
1500+
$1.164
2000+
$1.152
2500+
$1.14
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LV4053APWT from Texas Instruments's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The SN74LV4053APWT is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 75Ohm
- Channel-to-Channel Matching (ΔRon): 1.3Ohm
- Voltage - Supply, Single (V+): 2V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 14ns, 14ns
- -3db Bandwidth: 50MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 0.5pF, 8.2pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -45dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
