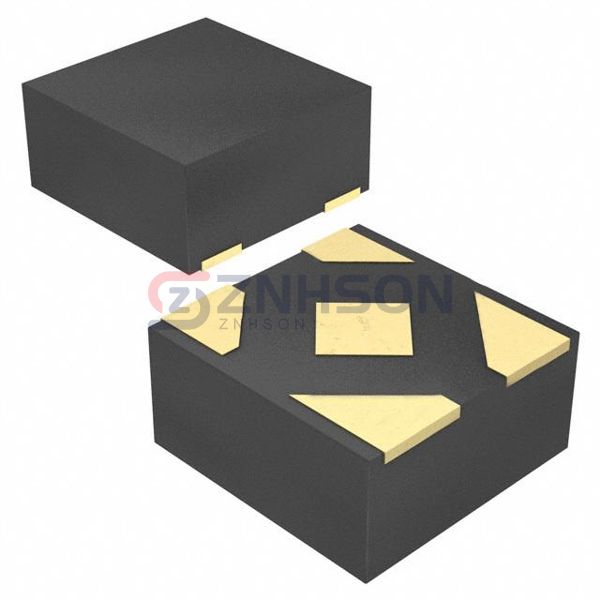

SN74LVC1G02DPWR
Texas Instruments
Texas Instruments
IC GATE NOR 1CH 2-INP 4XDFN
$0.47
Available to order
Reference Price (USD)
6,000+
$0.11040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74LVC1G02DPWR represents the cutting edge of Logic - Gates and Inverters technology in the ICs market. This versatile logic gate solution delivers exceptional performance in arithmetic operations, signal conditioning, and data processing. With its compact design and low power requirements, this IC is perfect for space-constrained applications like IoT devices, wearable technology, and portable medical equipment. The product features ESD protection and wide operating temperature range (-40 C to 125 C), making it suitable for harsh industrial environments. Whether you're designing robotics systems, smart home controllers, or automotive ECUs, the SN74LVC1G02DPWR provides the reliable logic functions you need.
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.7V ~ 0.8V
- Logic Level - High: 1.7V ~ 2V
- Max Propagation Delay @ V, Max CL: 4.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 4-XDFN (0.8x0.8)
- Package / Case: 4-XFDFN Exposed Pad
