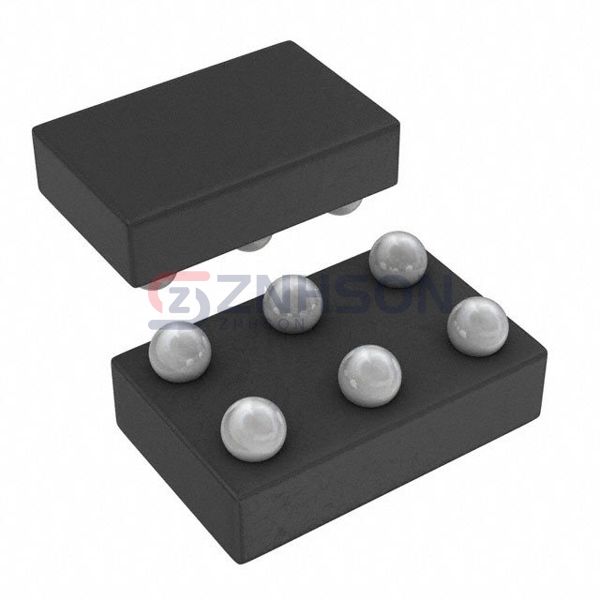

SN74LVC1G11YZPR
Texas Instruments
Texas Instruments
IC GATE AND 1CH 3-INP 6DSBGA
$0.22
Available to order
Reference Price (USD)
3,000+
$0.19840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LVC1G11YZPR from Texas Instruments delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The SN74LVC1G11YZPR's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Active
- Logic Type: AND Gate
- Number of Circuits: 1
- Number of Inputs: 3
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.7V ~ 0.8V
- Logic Level - High: 1.7V ~ 2V
- Max Propagation Delay @ V, Max CL: 3.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA
- Package / Case: 6-XFBGA, DSBGA
