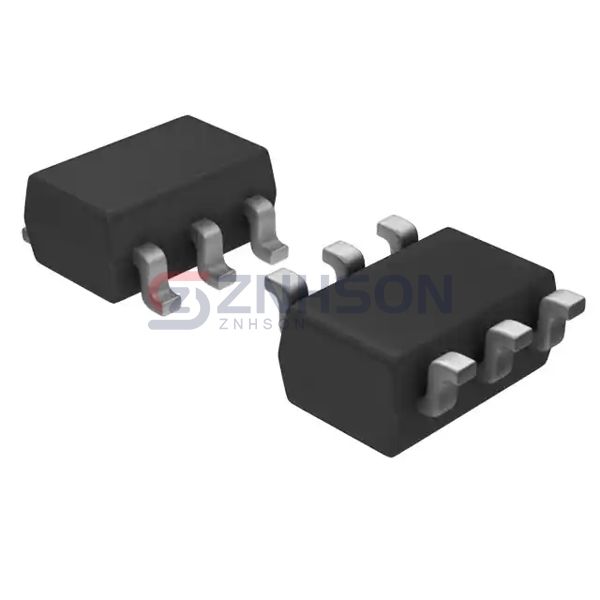

SN74LVC1G3157DBVR
Texas Instruments
Texas Instruments
IC SWITCH SPDT SOT23-6
$0.50
Available to order
Reference Price (USD)
1+
$0.50000
500+
$0.495
1000+
$0.49
1500+
$0.485
2000+
$0.48
2500+
$0.475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LVC1G3157DBVR from Texas Instruments's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The SN74LVC1G3157DBVR is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 15Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 5.7ns, 3.8ns
- -3db Bandwidth: 340MHz
- Charge Injection: 7pC
- Channel Capacitance (CS(off), CD(off)): 5.2pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -54dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
