SN74LVC2G02YEPR
Texas Instruments
Texas Instruments

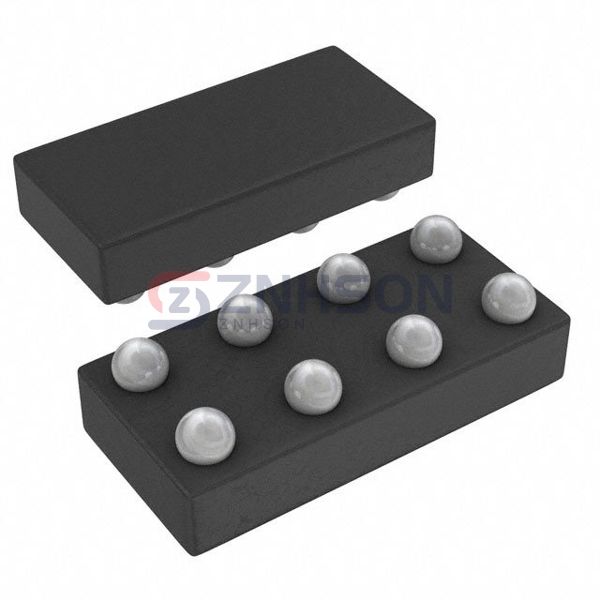

IC GATE NOR 2CH 2-INP 8DSBGA
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74LVC2G02YEPR exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The SN74LVC2G02YEPR is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Obsolete
- Logic Type: NOR Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.7V ~ 0.8V
- Logic Level - High: 1.7V ~ 2V
- Max Propagation Delay @ V, Max CL: 4.4ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DSBGA (1.9x0.9)
- Package / Case: 8-XFBGA, DSBGA
