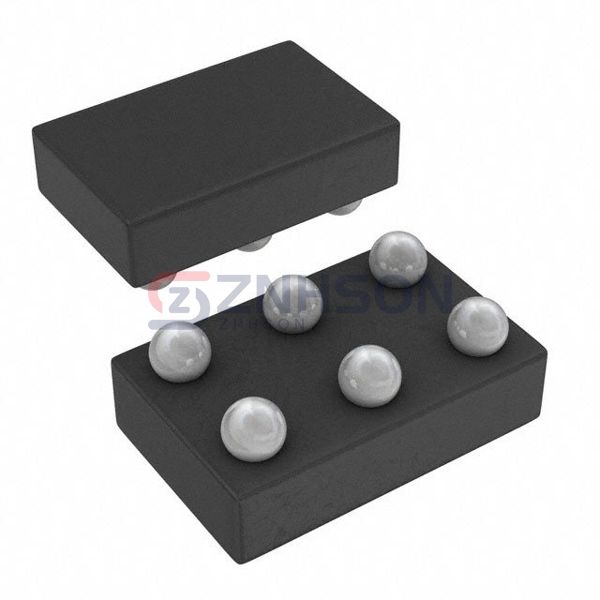

SN74LVC2G04YZPR
Texas Instruments
Texas Instruments
IC INVERTER 2CH 2-INP 6DSBGA
$2.12
Available to order
Reference Price (USD)
3,000+
$0.26700
6,000+
$0.24920
15,000+
$0.24030
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience reliable digital logic performance with Texas Instruments's SN74LVC2G04YZPR, a key component in our Logic - Gates and Inverters selection. This IC features buffered outputs for improved drive capability and reduced signal distortion. Technical highlights include 5ns maximum propagation delay and 24mA output drive at 5V. The SN74LVC2G04YZPR serves critical functions in computer architecture, including address decoding, bus interfacing, and memory control. Real-world applications encompass point-of-sale terminals, industrial HMI panels, and automotive dashboard electronics. With its moisture sensitivity level (MSL) rating of 1, this component is suitable for demanding production environments and extended storage periods.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 2
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.7V ~ 0.8V
- Logic Level - High: 1.7V ~ 2V
- Max Propagation Delay @ V, Max CL: 3.2ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA
- Package / Case: 6-XFBGA, DSBGA
Related Products
Toshiba Semiconductor and Storage
74VHC86FT
onsemi
MC74VHC1GT86DFT2
Fairchild Semiconductor
74VCX132M
Fairchild Semiconductor
NC7SV05P5X
onsemi
MC74AC132DG
onsemi

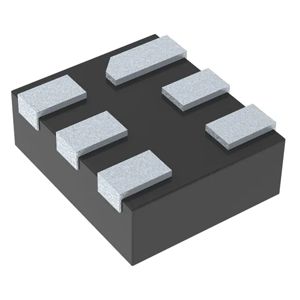

NLVVHC1G86DFT1G
