SN74LVC2T45DCTR
Texas Instruments
Texas Instruments
IC TRNSLTR BIDIRECTIONAL SM8
$1.00
Available to order
Reference Price (USD)
3,000+
$0.22910
6,000+
$0.21330
15,000+
$0.20540
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LVC2T45DCTR from Texas Instruments sets new standards for Logic Level Shifters in the ICs market. This advanced translator IC combines high-speed data transmission with exceptional power efficiency, featuring less than 1 A standby current. Its multi-channel architecture allows simultaneous translation of multiple signals, perfect for bus interfaces like I C, SPI, and UART. Application examples include drone controllers (bridging 1.8V sensors to 3.3V processors), smart home hubs (connecting 5V relays to low-voltage MCUs), and automotive infotainment systems (integrating various voltage domain components).
Specifications
- Product Status: Active
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 2
- Voltage - VCCA: 1.65 V ~ 5.5 V
- Voltage - VCCB: 1.65 V ~ 5.5 V
- Input Signal: -
- Output Signal: -
- Output Type: Tri-State, Non-Inverted
- Data Rate: 420Mbps
- Operating Temperature: -40°C ~ 85°C (TA)
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
- Supplier Device Package: SM8
Related Products
onsemi
MC10ELT22DT
Microchip Technology
SY100EPT23LZG-TR
Texas Instruments
CLVC16T245MDGGEP
Texas Instruments
TCA9416DDFR
Nexperia USA Inc.
NXB0102DCH
Texas Instruments

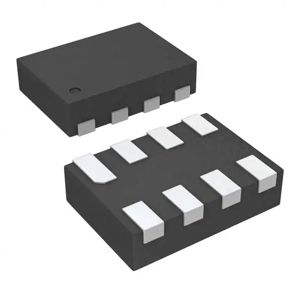

PCA9306DQER
Runic Technology
RS0108YQ20
Texas Instruments

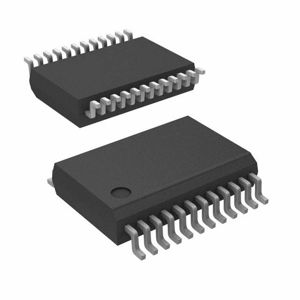

SN74LVCC3245ADBR
Nexperia USA Inc.

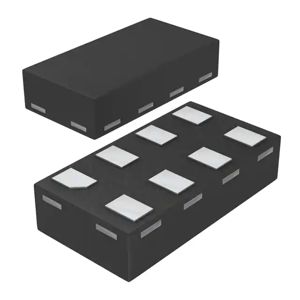

74AVCH2T45GF,115
