SN74LVC3G14DCUT
Texas Instruments
Texas Instruments
IC INVERT SCHMITT 3CH 3IN 8VSSOP
$0.90
Available to order
Reference Price (USD)
1+
$0.90000
500+
$0.891
1000+
$0.882
1500+
$0.873
2000+
$0.864
2500+
$0.855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your digital designs with Texas Instruments's SN74LVC3G14DCUT, a premium Logic - Gates and Inverters solution. This IC features ultra-low power consumption (typical ICC < 1 A) without sacrificing speed, making it ideal for battery-powered devices. The robust design includes overvoltage tolerance on inputs and power-off protection. Application areas include sensor interfaces, motor control systems, and wireless communication modules. Specific implementations might involve smart meter designs, HVAC control boards, or automotive infotainment systems. With Texas Instruments's reputation for quality, the SN74LVC3G14DCUT ensures reliable operation across commercial, industrial, and military temperature ranges.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 3
- Number of Inputs: 3
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.3V ~ 1.4V
- Logic Level - High: 1.4V ~ 3.7V
- Max Propagation Delay @ V, Max CL: 4.3ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSSOP
- Package / Case: 8-VFSOP (0.091", 2.30mm Width)
Related Products
Texas Instruments
SN74HC05N
National Semiconductor
54LS260LMQB
Texas Instruments
SN74LVC1G332DBVR
onsemi
NL17SZ14DFT2G
NXP USA Inc.

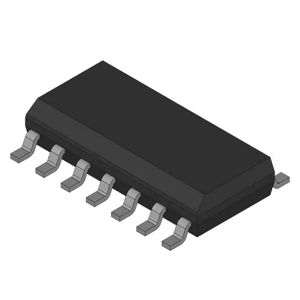

N74F38D-Q100118
NXP Semiconductors
74AHC164D,118
Texas Instruments
SN74AHC1G08DBVT
Texas Instruments
SN74AHCT02DGVR
Toshiba Semiconductor and Storage

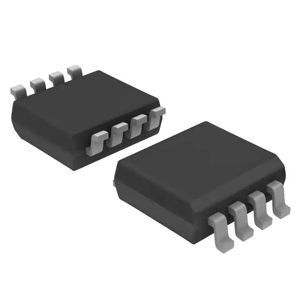

TC7WZ32FK,LJ(CT
