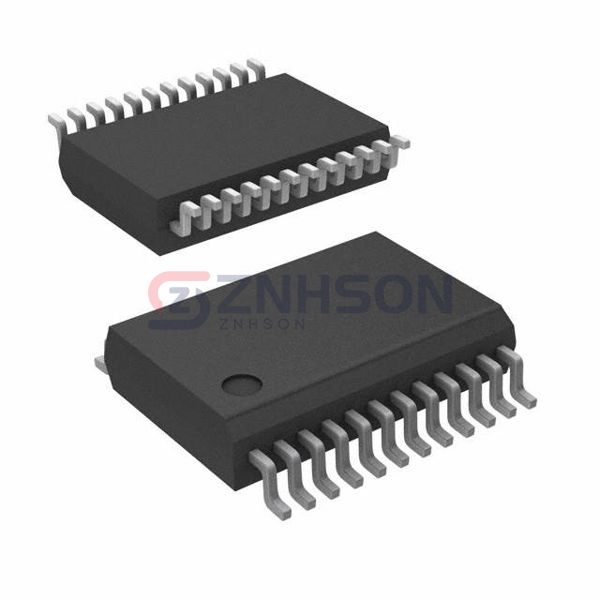

SN74LVCC4245ADBR
Texas Instruments
Texas Instruments
IC TRNSLTR BIDIRECTIONAL 24SSOP
$0.94
Available to order
Reference Price (USD)
2,000+
$0.55860
6,000+
$0.53067
10,000+
$0.51072
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LVCC4245ADBR from Texas Instruments redefines expectations for Logic Translator ICs in the Integrated Circuits category. With its innovative architecture, this level shifter handles asymmetric voltage translations (e.g., 1.8V to 5V) without additional components. The integrated slew rate control minimizes EMI, while the fail-safe I/O protection prevents damage from voltage spikes. Typical deployments include agricultural IoT (connecting 3V soil sensors to 5V LoRa transceivers), vending machines (interface between currency validators and main controllers), and building automation (bridging different voltage domain subsystems).
Specifications
- Product Status: Active
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 8
- Voltage - VCCA: 4.5 V ~ 5.5 V
- Voltage - VCCB: 2.7 V ~ 5.5 V
- Input Signal: -
- Output Signal: -
- Output Type: Tri-State, Non-Inverted
- Data Rate: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 24-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 24-SSOP
Related Products
Nexperia USA Inc.
74LVC2T45GF,115
Fairchild Semiconductor
100391PC
onsemi
NB100ELT23LDG
Texas Instruments

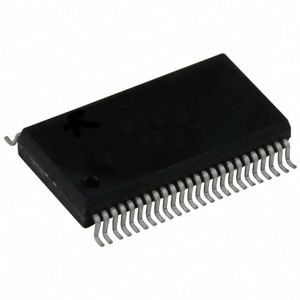

74LVC16T245DGGRG4
Analog Devices Inc.
ADG3304WBRUZ-REEL
Texas Instruments
TCA9406DCTR
NXP USA Inc.
GTL2012DP,118
Nexperia USA Inc.

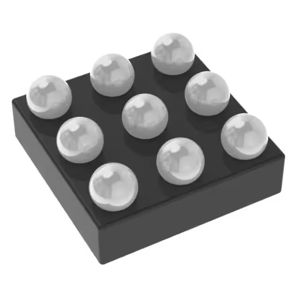

NXT4556UPZ
Renesas Electronics America Inc

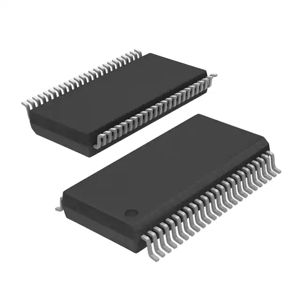

74FCT164245TPAG8
