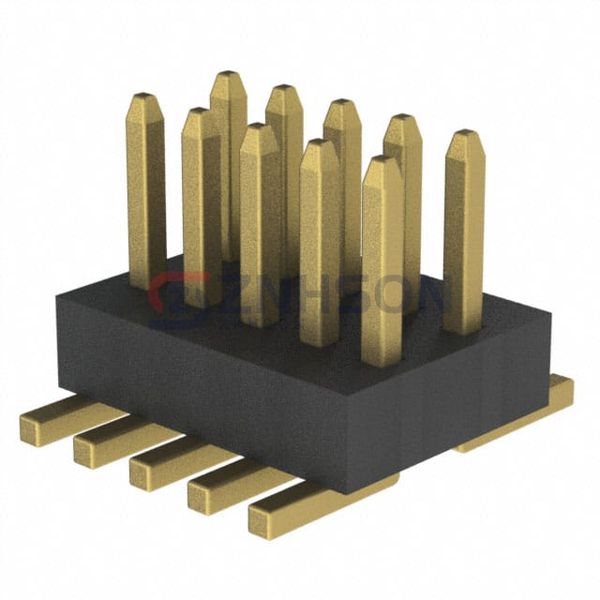

SPH2-10-U-SMT
Adam Tech
Adam Tech
CONN HEADER SMD 10POS 0.8MM
$1.47
Available to order
Reference Price (USD)
1+
$1.40000
10+
$1.27400
100+
$1.09220
500+
$0.91018
1,000+
$0.78015
5,000+
$0.69173
10,000+
$0.67613
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SPH2-10-U-SMT by Adam Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the SPH2-10-U-SMT supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Adam Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.047" (1.20mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
Related Products
Molex
0702871121
Amphenol ICC (FCI)
75869-130LF
Amphenol ICC (FCI)
10127721-082LF
Amphenol ICC (FCI)
77311-401-17LF
NorComp Inc.
26645001RP2
Harwin Inc.
M83-LML3M7N27-0000-000
Sullins Connector Solutions
PBC09DFEN
Samtec Inc.
FTS-115-02-L-DV-A
Samtec Inc.

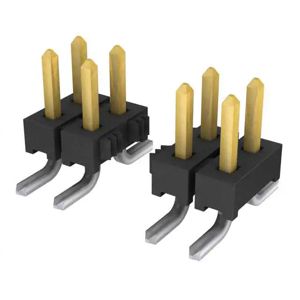

TMM-122-01-L-D-SM-P-TR
