SQW-120-01-S-D
Samtec Inc.
Samtec Inc.
CONN RCPT 40POS 0.079 GOLD PCB
$11.83
Available to order
Reference Price (USD)
1+
$7.08000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your project's performance with SQW-120-01-S-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are built to withstand harsh conditions while maintaining excellent electrical properties. Key features include high mating cycles, EMI shielding, and ergonomic designs. Widely used in renewable energy systems, robotics, and audio/video equipment, Samtec Inc. connectors ensure seamless integration. Applications range from solar inverters to industrial robots and professional AV setups.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 40
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3.8A per Contact
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
316-91-163-41-008000
Mill-Max Manufacturing Corp.
851-43-023-10-011000
Mill-Max Manufacturing Corp.
311-99-103-41-001000
Samtec Inc.

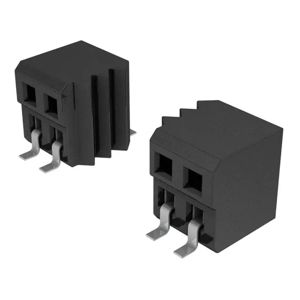

CLP-121-02-L-DH
Preci-Dip

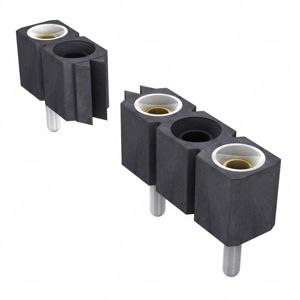

315-83-119-01-881101
Mill-Max Manufacturing Corp.

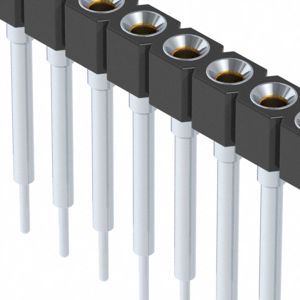

316-91-149-41-008000
Samtec Inc.

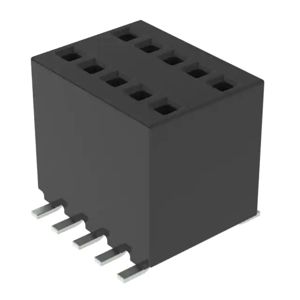

RSM-111-02-L-D-K-TR
Mill-Max Manufacturing Corp.

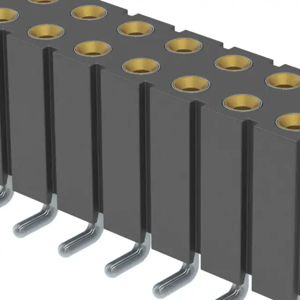

803-43-094-30-001000
Preci-Dip

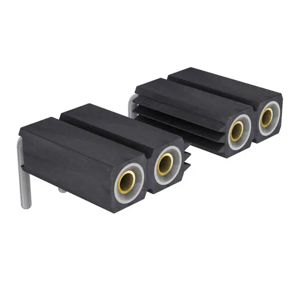

801-87-007-20-001101
