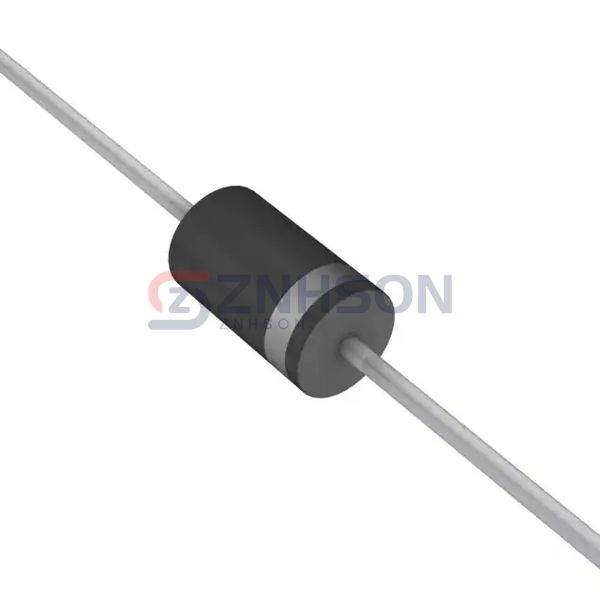

SR504H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 40V 5A DO201AD
$0.23
Available to order
Reference Price (USD)
1+
$0.22881
500+
$0.2265219
1000+
$0.2242338
1500+
$0.2219457
2000+
$0.2196576
2500+
$0.2173695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SR504H single rectifier diode by Taiwan Semiconductor Corporation is a standout in the Diodes - Rectifiers - Single classification. Known for its robust construction and high rectification efficiency, it is perfect for demanding applications like electric vehicle charging stations and industrial robotics. Its low power dissipation and high thermal stability ensure optimal performance in data storage systems and server farms. The SR504H is also used in consumer gadgets, such as smartphones and tablets, highlighting its adaptability. Taiwan Semiconductor Corporation's SR504H is the ultimate solution for high-performance rectification needs.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 40 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 125°C
