SSM-105-S-DV-P-TR
Samtec Inc.
Samtec Inc.

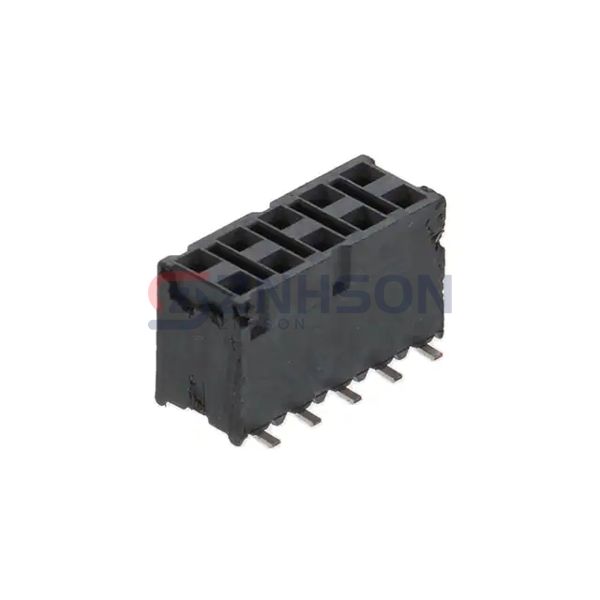

CONN RCPT 10POS 0.1 GOLD SMD
$6.09
Available to order
Reference Price (USD)
1+
$6.09000
500+
$6.0291
1000+
$5.9682
1500+
$5.9073
2000+
$5.8464
2500+
$5.7855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SSM-105-S-DV-P-TR Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Samtec Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Pass Through
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.290" (7.37mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Pick and Place
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: 405VAC, 572VDC
