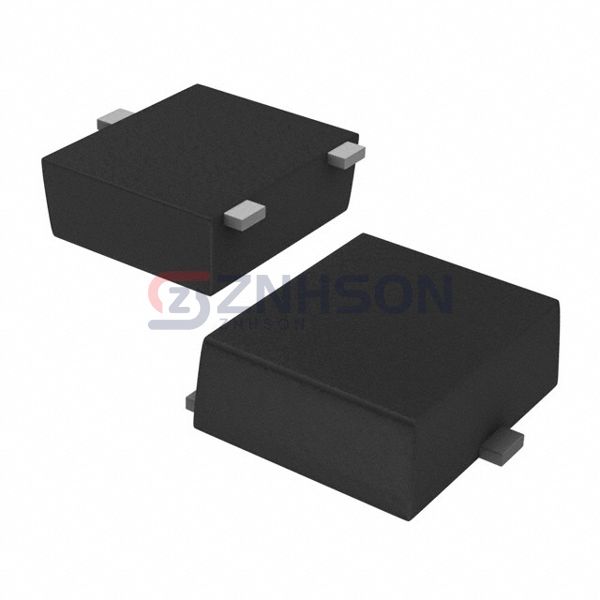

SSM3J114TU(TE85L)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET P-CH 20V 1.8A UFM
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
500+
$0.4356
1000+
$0.4312
1500+
$0.4268
2000+
$0.4224
2500+
$0.418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the SSM3J114TU(TE85L) by Toshiba Semiconductor and Storage, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The SSM3J114TU(TE85L) stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Toshiba Semiconductor and Storage.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4V
- Rds On (Max) @ Id, Vgs: 149mOhm @ 600mA, 4V
- Vgs(th) (Max) @ Id: 1V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 7.7 nC @ 4 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 331 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: UFM
- Package / Case: 3-SMD, Flat Leads
