SSQ-107-02-T-S-RA
Samtec Inc.
Samtec Inc.

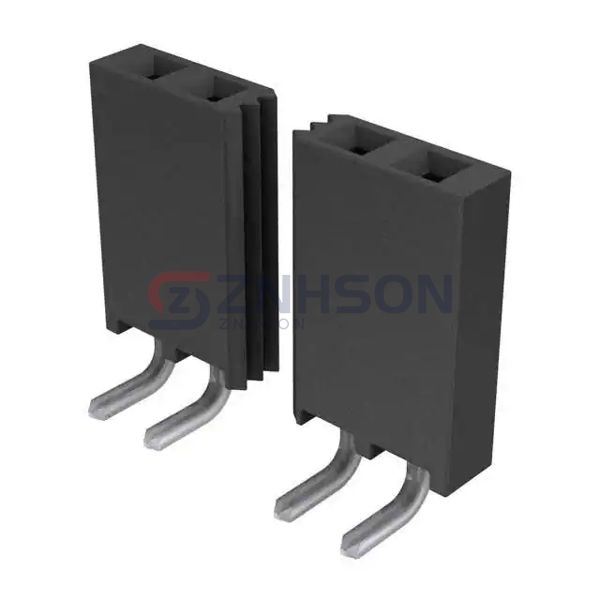

CONN RCPT 7POS 0.1 TIN PCB R/A
$0.97
Available to order
Reference Price (USD)
1+
$0.87000
10+
$0.76300
25+
$0.71760
50+
$0.68780
100+
$0.65790
250+
$0.59808
500+
$0.53828
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SSQ-107-02-T-S-RA Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Samtec Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 7
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.095" (2.41mm)
- Contact Length - Post: 0.100" (2.54mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 465VAC, 655VDC
