SSQ-143-02-G-D-RA
Samtec Inc.
Samtec Inc.

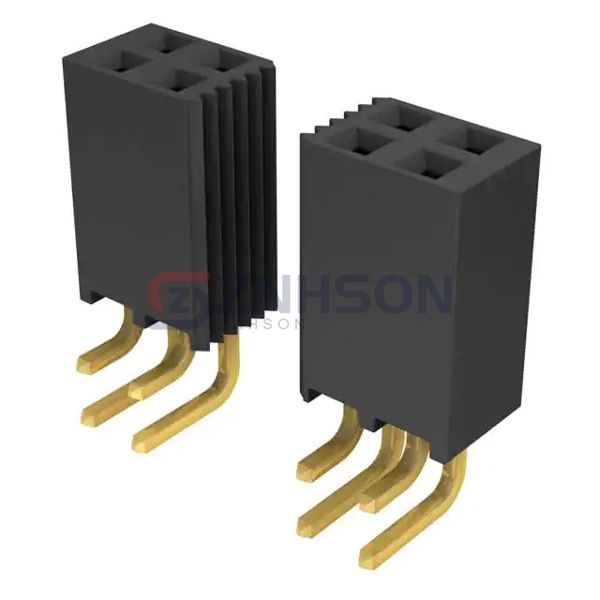

CONN RCPT 86POS 0.1 GOLD PCB R/A
$14.24
Available to order
Reference Price (USD)
1+
$12.69000
10+
$11.53800
25+
$11.24920
50+
$10.38400
100+
$9.80710
250+
$8.94176
500+
$8.36488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SSQ-143-02-G-D-RA Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 86
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.195" (4.95mm)
- Contact Length - Post: 0.100" (2.54mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 465VAC, 655VDC
