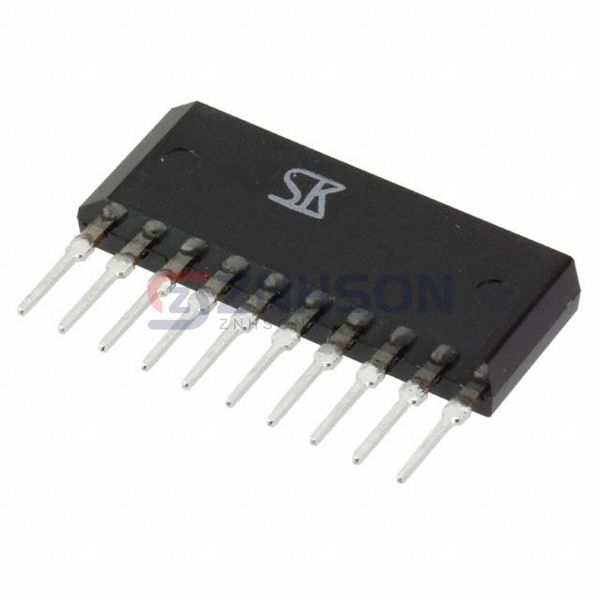

STA481A
Sanken
Sanken
TRANS 4NPN DARL 60V 1A 10SIP
$1.48
Available to order
Reference Price (USD)
1+
$2.93000
10+
$2.64600
25+
$2.36240
100+
$2.12630
250+
$1.89000
500+
$1.65376
1,000+
$1.37025
2,500+
$1.27575
5,000+
$1.26000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STA481A BJT Array from Sanken brings military-grade robustness to commercial applications. With a wide operating temperature range (-55 C to +150 C), this Discrete Semiconductor Product performs flawlessly in downhole drilling equipment and satellite subsystems. Its symmetrical layout simplifies heat sink integration for high-power RF amplifiers. The STA481A undergoes rigorous Q-Class testing to guarantee radiation hardness for aerospace deployments.
Specifications
- Product Status: Obsolete
- Transistor Type: 4 NPN Darlington (Quad)
- Current - Collector (Ic) (Max): 1A
- Voltage - Collector Emitter Breakdown (Max): 60V
- Vce Saturation (Max) @ Ib, Ic: 1.5V @ 1mA, 500mA
- Current - Collector Cutoff (Max): 10µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 2000 @ 500mA, 4V
- Power - Max: 4W
- Frequency - Transition: 50MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 10-SIP
- Supplier Device Package: 10-SIP
