STD9N80K5
STMicroelectronics
STMicroelectronics
MOSFET N-CHANNEL 800V 7A DPAK
$1.48
Available to order
Reference Price (USD)
2,500+
$1.13900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STD9N80K5 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STD9N80K5 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 900mOhm @ 3.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products
Toshiba Semiconductor and Storage
TK14A45DA(STA4,QM)
Sanken
SKI07114
Diodes Incorporated
BSS123-7-F
Rohm Semiconductor
R6530ENZ4C13
onsemi
NTHD2110TT1G
STMicroelectronics
STP15N95K5
Microchip Technology

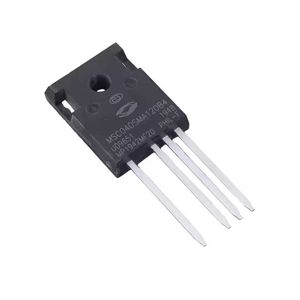

MSC040SMA120B4
Vishay Siliconix

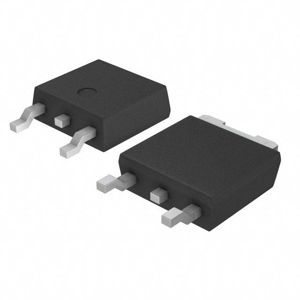

IRFR420TRRPBF
