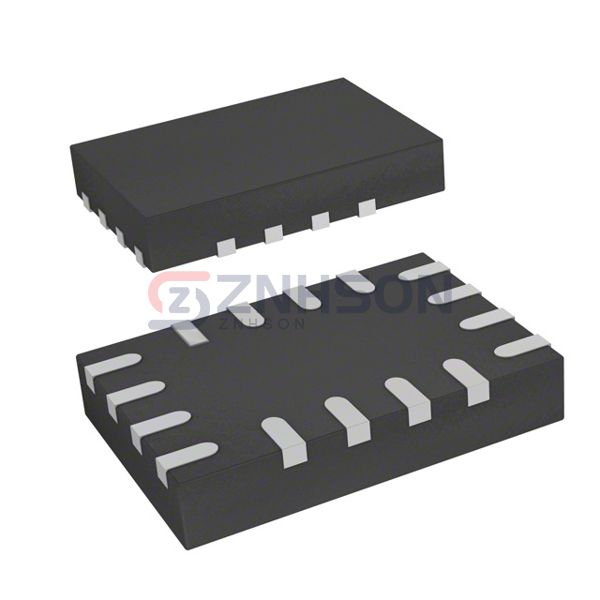

STG5682QTR
STMicroelectronics
STMicroelectronics
IC SWITCH DUAL SPDT 16QFN
$1.84
Available to order
Reference Price (USD)
3,000+
$0.67606
6,000+
$0.64226
15,000+
$0.61811
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's STG5682QTR redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The STG5682QTR is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 550mOhm
- Channel-to-Channel Matching (ΔRon): 15mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 80ns, 50ns
- -3db Bandwidth: 33MHz
- Charge Injection: 126pC
- Channel Capacitance (CS(off), CD(off)): 6pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -60dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN
- Supplier Device Package: 16-QFN (2.6x1.8)
