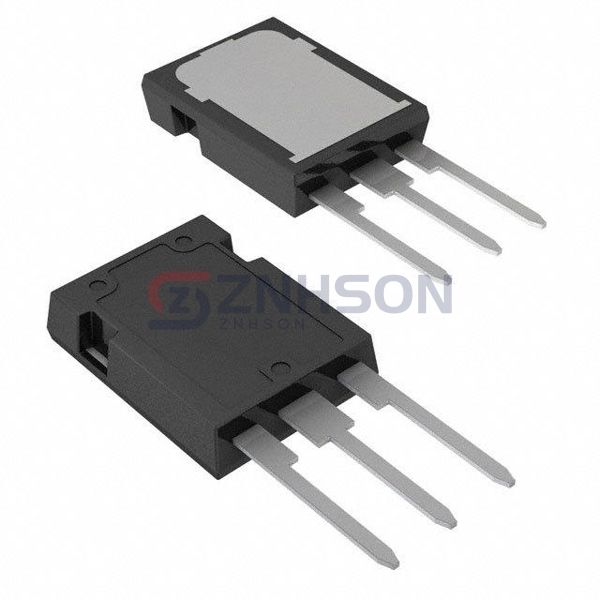

STGY50NC60WD
STMicroelectronics
STMicroelectronics
IGBT 600V 110A 278W MAX247
$16.97
Available to order
Reference Price (USD)
1+
$15.09000
30+
$13.43467
120+
$11.97942
510+
$10.78875
1,020+
$10.01700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STGY50NC60WD Single IGBT transistor by STMicroelectronics, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the STGY50NC60WD ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the STGY50NC60WD for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 110 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 40A
- Power - Max: 278 W
- Switching Energy: 365µJ (on), 560µJ (off)
- Input Type: Standard
- Gate Charge: 195 nC
- Td (on/off) @ 25°C: 52ns/240ns
- Test Condition: 390V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 55 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: MAX247™
