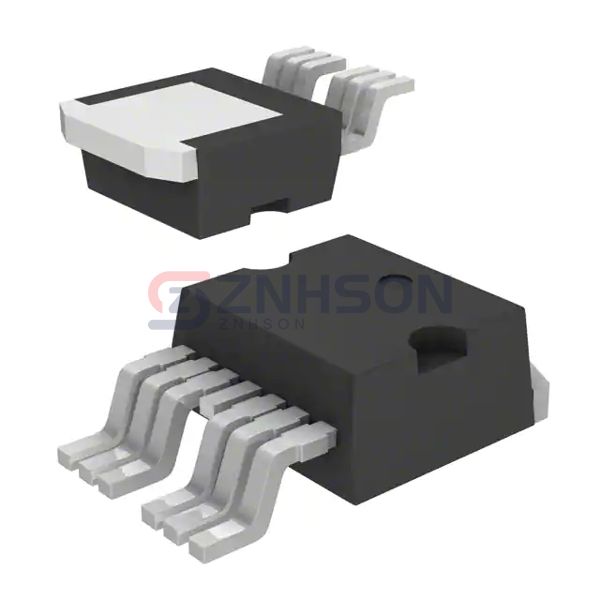

STH290N4F6-6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 180A H2PAK-6
$2.66
Available to order
Reference Price (USD)
1,000+
$2.31820
2,000+
$2.21502
5,000+
$2.14132
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STH290N4F6-6AG from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STH290N4F6-6AG for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 180A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.7mOhm @ 45A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 115 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7380 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2PAK-6
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
Related Products
NXP USA Inc.
PMZ600UNE315
onsemi
NTMS4872NR2G
onsemi
MCH6331-TL-H
Nexperia USA Inc.
BUK762R6-60E,118
Rohm Semiconductor
R6004KNX
Diodes Incorporated
ZXMN10A08GTA
onsemi
MGSF3454XT1
onsemi

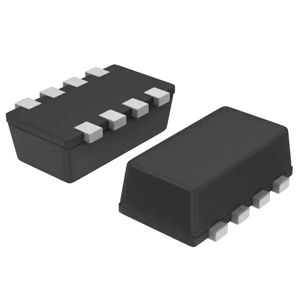

NTHS5402T1
onsemi

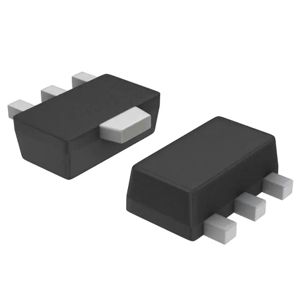

PCP1402-TD-H
