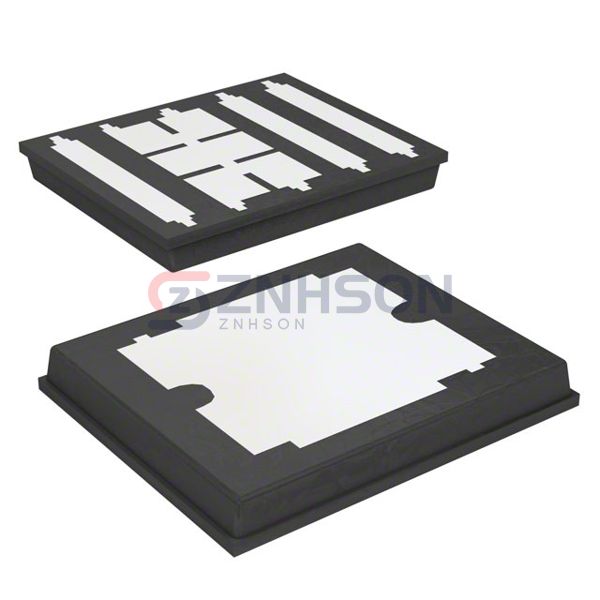

STK22N6F3
STMicroelectronics
STMicroelectronics
MOSFET N-CH 60V 22A POLARPAK
$4.21
Available to order
Reference Price (USD)
1+
$4.21000
500+
$4.1679
1000+
$4.1258
1500+
$4.0837
2000+
$4.0416
2500+
$3.9995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STK22N6F3 from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STK22N6F3 ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 41 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2500 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 5.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PolarPak®
- Package / Case: PolarPak®
Related Products
Vishay Siliconix
SIHF520STRL-GE3
onsemi
NTD95N02RT4
onsemi
2SJ263
IXYS
IXTQ52P10P
IXYS
IXFX80N50P
Infineon Technologies
BSZ018N04LS6ATMA1
Toshiba Semiconductor and Storage
SSM6K513NU,LF
STMicroelectronics
STF7N52K3
Infineon Technologies

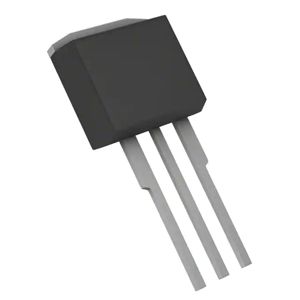

IPI120N08S403AKSA1
