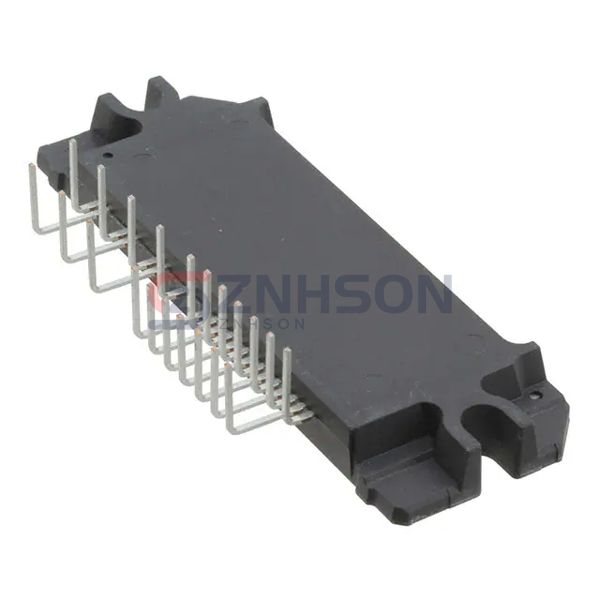

STK534U363C-E
onsemi
onsemi
3 PHASE INVERTER IPM
$10.50
Available to order
Reference Price (USD)
1+
$16.80000
11+
$15.44000
110+
$13.04000
506+
$11.60000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power systems with the STK534U363C-E onsemi PMIC - Full, Half-Bridge Driver, engineered for excellence in high-power applications. This IC is ideal for use in welding machines, power tools, and electric bicycles, delivering robust performance and energy efficiency. The STK534U363C-E includes comprehensive protection features such as over-temperature and short-circuit protection, ensuring long-term reliability. onsemi's commitment to innovation shines through in this high-quality driver IC, designed to meet the needs of modern electronics.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (3)
- Applications: AC Motors
- Interface: Logic
- Load Type: Inductive
- Technology: IGBT
- Rds On (Typ): -
- Current - Output / Channel: 10A
- Current - Peak Output: 20A
- Voltage - Supply: 12.5V ~ 17.5V
- Voltage - Load: 450V (Max)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Bootstrap Circuit
- Fault Protection: UVLO
- Mounting Type: Through Hole
- Package / Case: 29-SSIP Module, 21 Leads, Formed Leads
- Supplier Device Package: 29-SIP
Related Products
Sanken
SCM1243MF
Texas Instruments
CSD95378BQ5MC
Fairchild Semiconductor
FDMF8700
Vishay Siliconix
SIC532CD-T1-GE3
Texas Instruments
UC3717AN

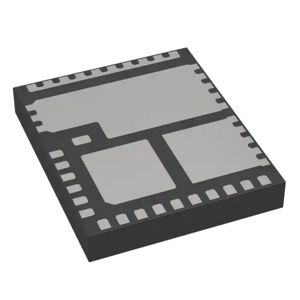

Monolithic Power Systems Inc.
MP86957GMJ-Z

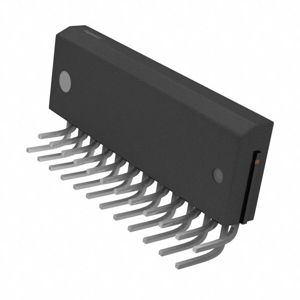

Sanken
SMA6862MZ-LF2451

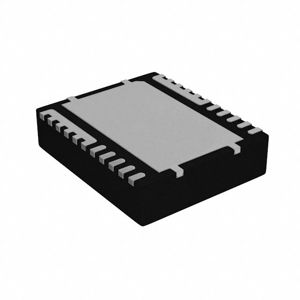

Texas Instruments
CSD95372BQ5MT

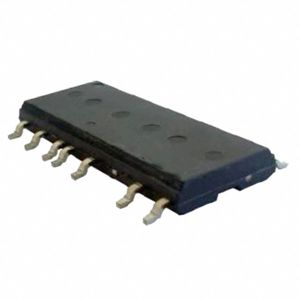

Infineon Technologies
