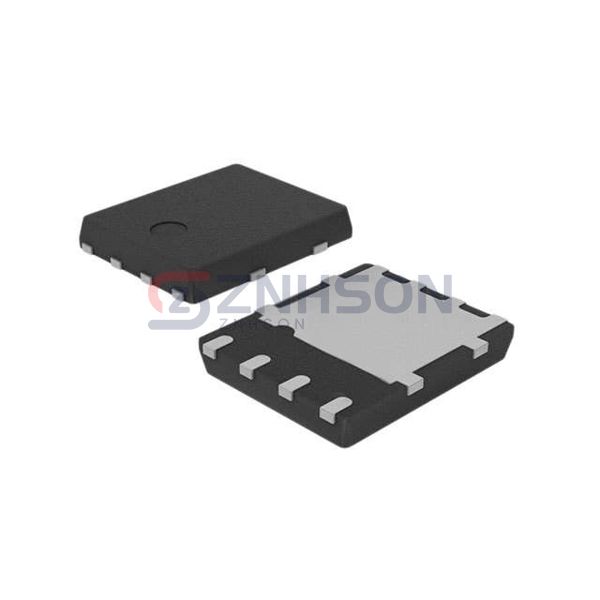

STL120N4F6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 55A POWERFLAT
$2.48
Available to order
Reference Price (USD)
3,000+
$0.88775
6,000+
$0.85860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STL120N4F6AG from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STL120N4F6AG ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 55A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 63 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3700 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 96W (Tc)
- Operating Temperature: 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Infineon Technologies
IPD90P04P405ATMA2
Rohm Semiconductor
RS1P600BETB1
Nexperia USA Inc.
PSMNR60-25YLHX
IXYS
IXFN210N20P
IXYS
IXTA380N036T4-7
Alpha & Omega Semiconductor Inc.
AOWF095A60
onsemi
NTMFS4C020NT3G
NXP USA Inc.
PMZB200UNE315
Microchip Technology

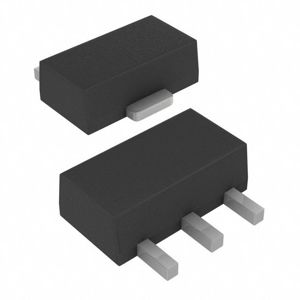

TN5335N8-G
