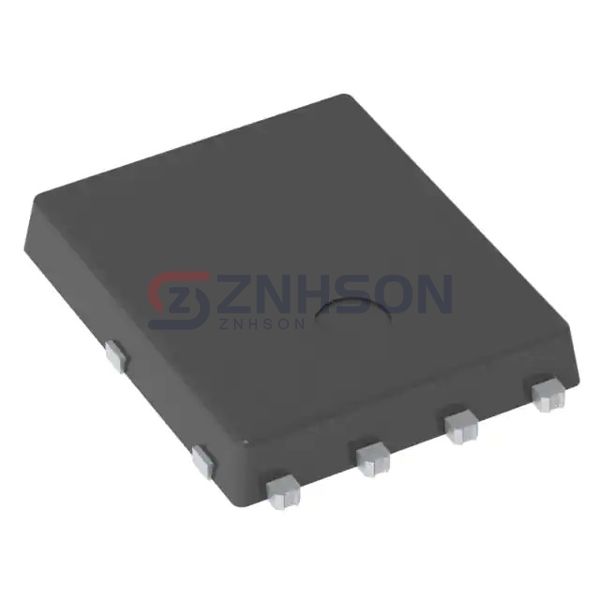

STL135N8F7AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 80V 130A POWERFLAT
$3.41
Available to order
Reference Price (USD)
3,000+
$1.42375
6,000+
$1.37700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STL135N8F7AG single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STL135N8F7AG for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 130A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 103 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6800 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 4.8W (Ta), 135W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Toshiba Semiconductor and Storage
SSM6K404TU,LF
EPC
EPC2212
Diodes Incorporated
DMP56D0UFB-7
Vishay Siliconix
IRFBC40APBF-BE3
onsemi
NDD60N360U1T4G
onsemi
FDB120N10
Diodes Incorporated
DMT6005LSS-13
Vishay Siliconix

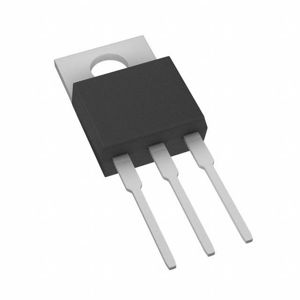

IRF9630PBF-BE3
