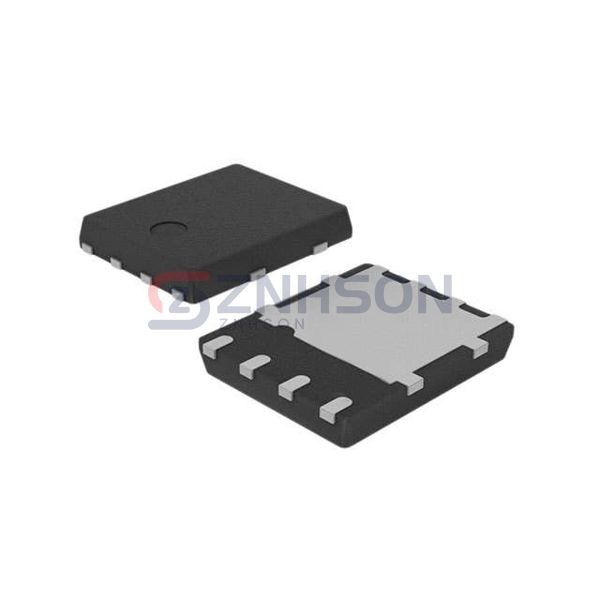

STL220N6F7
STMicroelectronics
STMicroelectronics
MOSFET N-CH 60V 120A POWERFLAT
$3.67
Available to order
Reference Price (USD)
3,000+
$1.98360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL220N6F7 single MOSFET from STMicroelectronics is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the STL220N6F7 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.4mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 100 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6600 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 4.8W (Ta), 187W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
