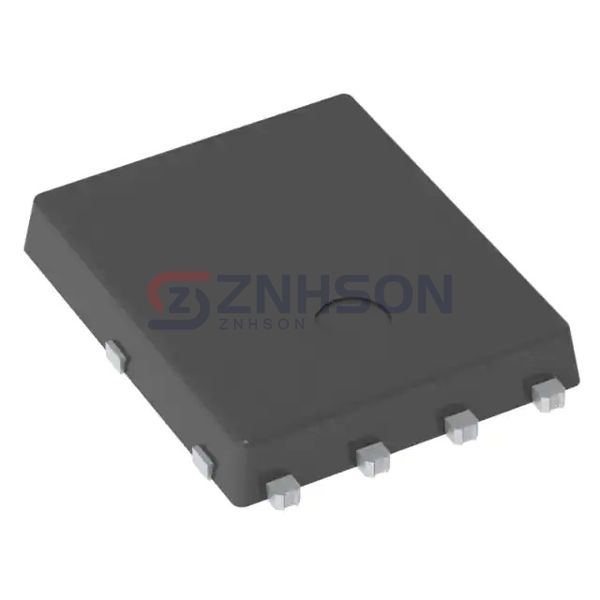

STL70N4LLF5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 70A POWERFLAT
$1.69
Available to order
Reference Price (USD)
3,000+
$1.15575
6,000+
$1.11780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STL70N4LLF5 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STL70N4LLF5 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 9A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 4.5 V
- Vgs (Max): ±22V
- Input Capacitance (Ciss) (Max) @ Vds: 1800 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 72W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Texas Instruments
CSD16342Q5A
Renesas Electronics America Inc
NP32N055SHE-E1-AY
Vishay Siliconix
IRFR1N60APBF
onsemi
FQP12P10
NTE Electronics, Inc
NTE2376
onsemi

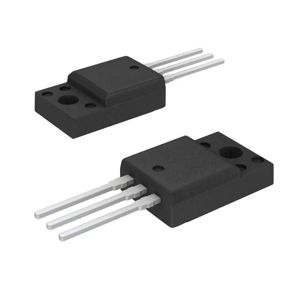

FDPF190N15A
Rohm Semiconductor

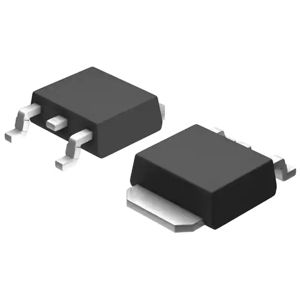

RD3G500GNTL
Nexperia USA Inc.

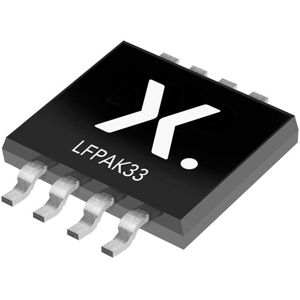

BUK7M15-60EX
Microchip Technology

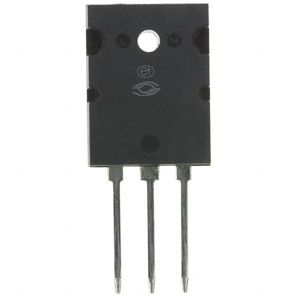

APT10035LFLLG
