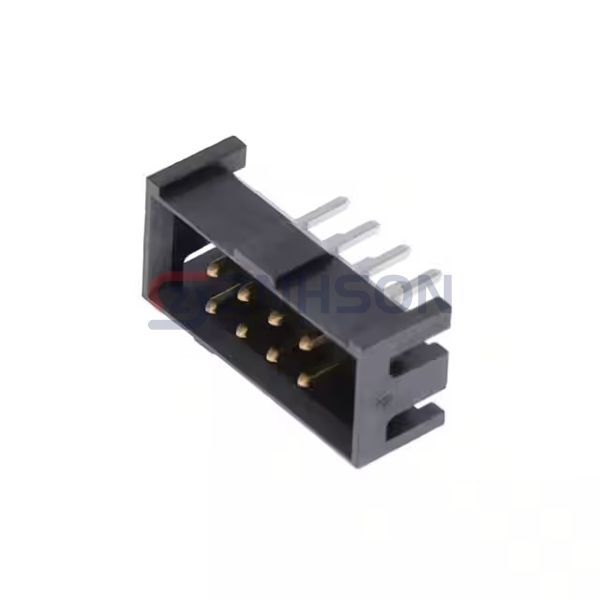

STMM-104-02-F-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 8POS 2MM
$4.41
Available to order
Reference Price (USD)
1+
$2.53000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STMM-104-02-F-D male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.302" (7.67mm)
- Insulation Height: 0.190" (4.83mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
