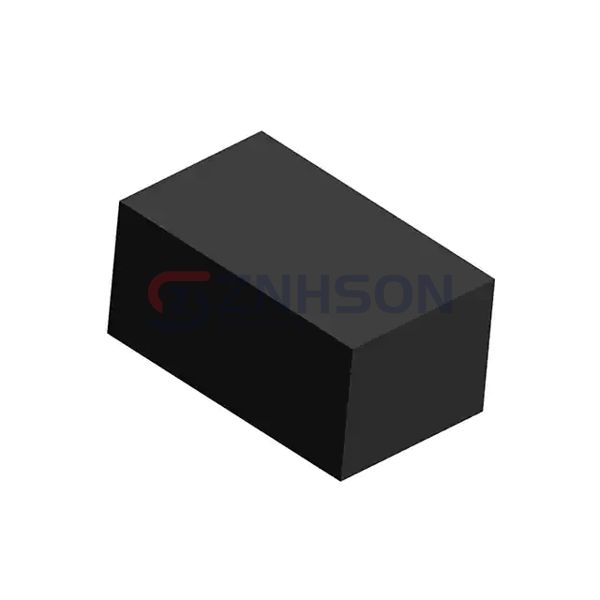

STN101120B111
Eaton - Electronics Division
Eaton - Electronics Division
TVS DIODE 12VWM 26VC DFN1006-2L
$0.41
Available to order
Reference Price (USD)
1+
$0.41000
500+
$0.4059
1000+
$0.4018
1500+
$0.3977
2000+
$0.3936
2500+
$0.3895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STN101120B111 TVS diode by Eaton - Electronics Division offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the STN101120B111 can safeguard solar inverters from overvoltage events. Choose Eaton - Electronics Division for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 13.3V
- Voltage - Clamping (Max) @ Ipp: 26V
- Current - Peak Pulse (10/1000µs): 4A (8/20µs)
- Power - Peak Pulse: 150W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 11pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: DFN1006-2L
