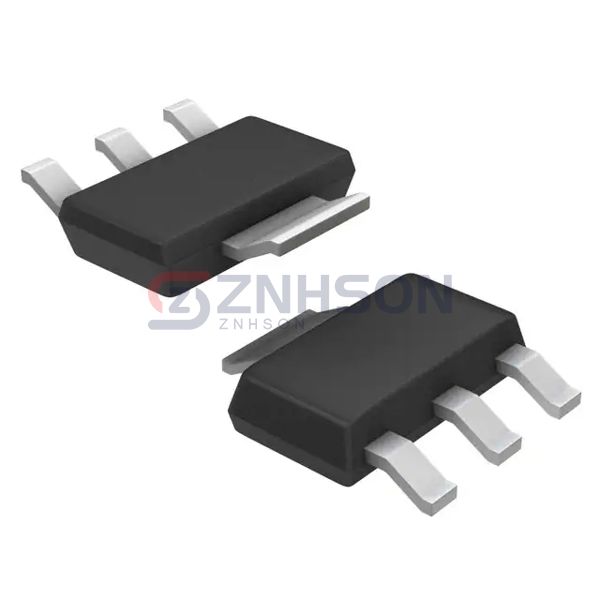

STN3P6F6
STMicroelectronics
STMicroelectronics
MOSFET P-CH 60V SOT223
$1.00
Available to order
Reference Price (USD)
4,000+
$0.34094
8,000+
$0.31993
12,000+
$0.30942
28,000+
$0.30369
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STN3P6F6 by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STN3P6F6 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 3A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 160mOhm @ 1.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.4 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 48 V
- FET Feature: -
- Power Dissipation (Max): 2.6W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-223
- Package / Case: TO-261-4, TO-261AA
