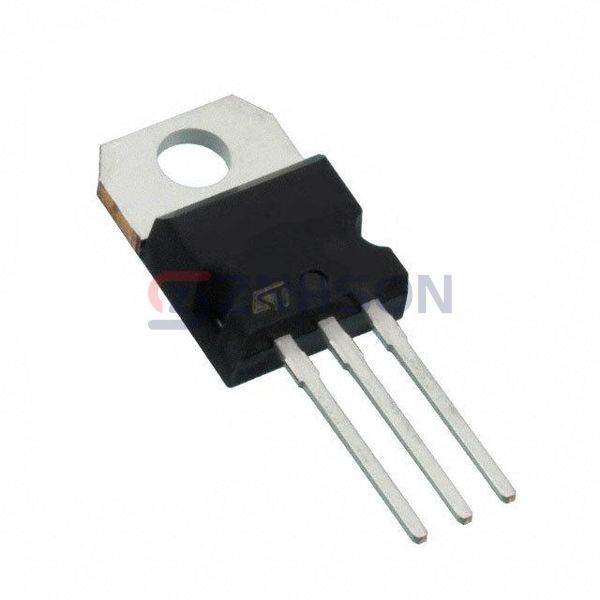

STPS20SM120STN
STMicroelectronics
STMicroelectronics
DIODE SCHOTTKY 120V 20A TO220AB
$1.58
Available to order
Reference Price (USD)
1+
$1.67000
50+
$1.43520
100+
$1.19520
500+
$1.00320
1,000+
$0.81120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STPS20SM120STN single rectifier diode by STMicroelectronics, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The STPS20SM120STN is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose STMicroelectronics's STPS20SM120STN for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 890 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 210 µA @ 120 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB Narrow Leads
- Operating Temperature - Junction: 150°C (Max)
