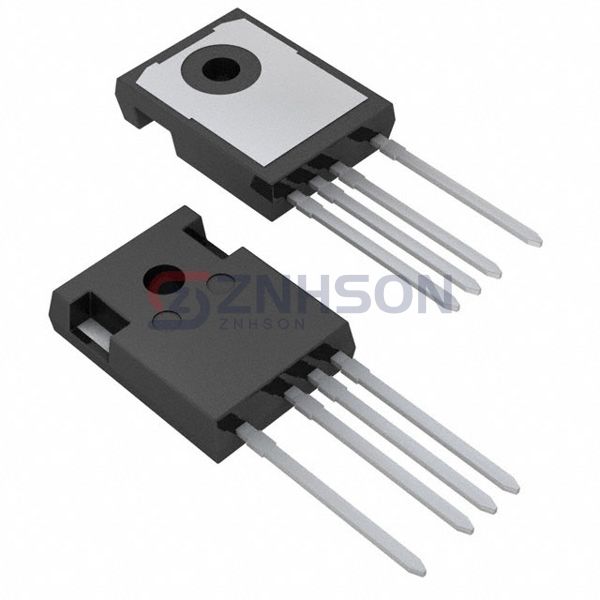

STW56N60M2-4
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 52A TO247-4L
$9.57
Available to order
Reference Price (USD)
1+
$9.19000
30+
$7.64300
120+
$6.95533
510+
$5.92376
1,020+
$5.23605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STW56N60M2-4 single MOSFET from STMicroelectronics is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the STW56N60M2-4 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 55mOhm @ 26A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 91 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 3750 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 350W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-4
- Package / Case: TO-247-4
