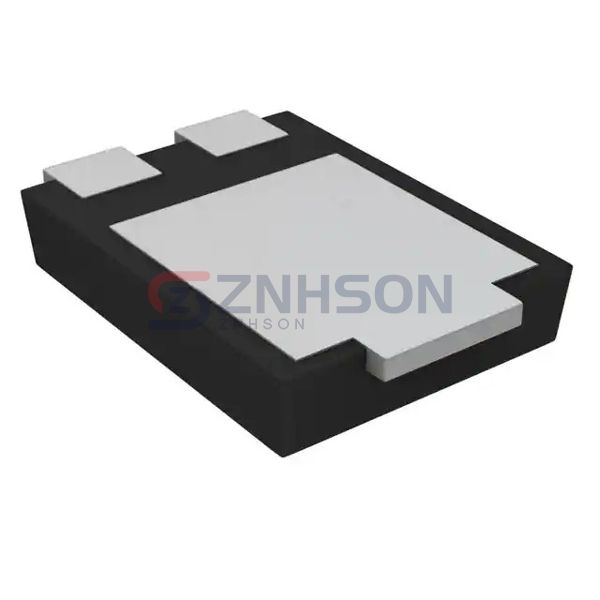

SVM1560U_R1_00001
Panjit International Inc.
Panjit International Inc.
EXTREME LOW VF SCHOTTKY RECTIFIE
$0.78
Available to order
Reference Price (USD)
1+
$0.78000
500+
$0.7722
1000+
$0.7644
1500+
$0.7566
2000+
$0.7488
2500+
$0.741
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the SVM1560U_R1_00001 single rectifier diode from Panjit International Inc.. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the SVM1560U_R1_00001 delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Panjit International Inc.'s SVM1560U_R1_00001 is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 15A
- Voltage - Forward (Vf) (Max) @ If: 560 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 320 µA @ 60 V
- Capacitance @ Vr, F: 850pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Vishay General Semiconductor - Diodes Division
VS-15MQ040NTRPBF
SURGE
FF4
SMC Diode Solutions
248NQ100-2
Rohm Semiconductor
RB168LAM150TFTR
Microchip Technology
JANS1N6638US/TR
Vishay General Semiconductor - Diodes Division
VS-10MQ100HM3/5AT
onsemi
US2MA
onsemi

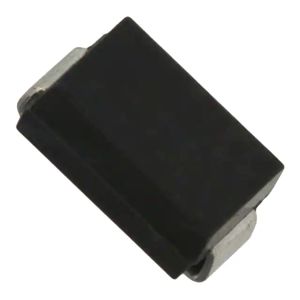

GF1K
