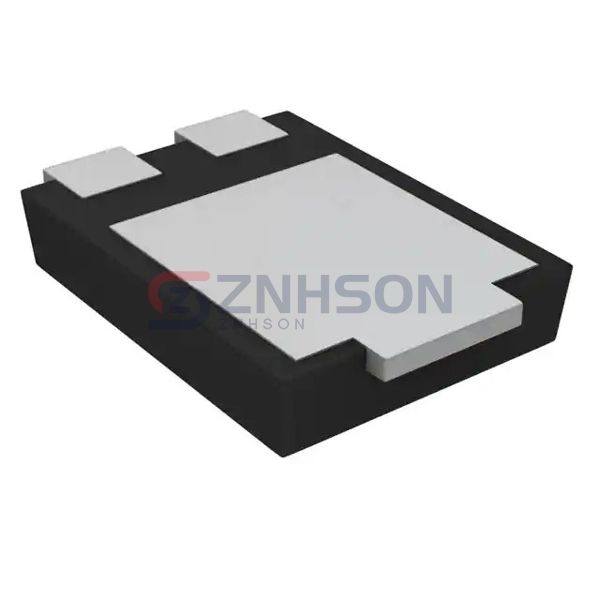

SVM1560UB_R2_00001
Panjit International Inc.
Panjit International Inc.
EXTREME LOW VF SCHOTTKY RECTIFIE
$0.91
Available to order
Reference Price (USD)
1+
$0.91000
500+
$0.9009
1000+
$0.8918
1500+
$0.8827
2000+
$0.8736
2500+
$0.8645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SVM1560UB_R2_00001 single rectifier diode by Panjit International Inc., a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The SVM1560UB_R2_00001 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Panjit International Inc.'s SVM1560UB_R2_00001 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 15A
- Voltage - Forward (Vf) (Max) @ If: 560 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 320 µA @ 60 V
- Capacitance @ Vr, F: 850pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277B
- Operating Temperature - Junction: -55°C ~ 150°C
