SW06GSZ
Analog Devices Inc.
Analog Devices Inc.

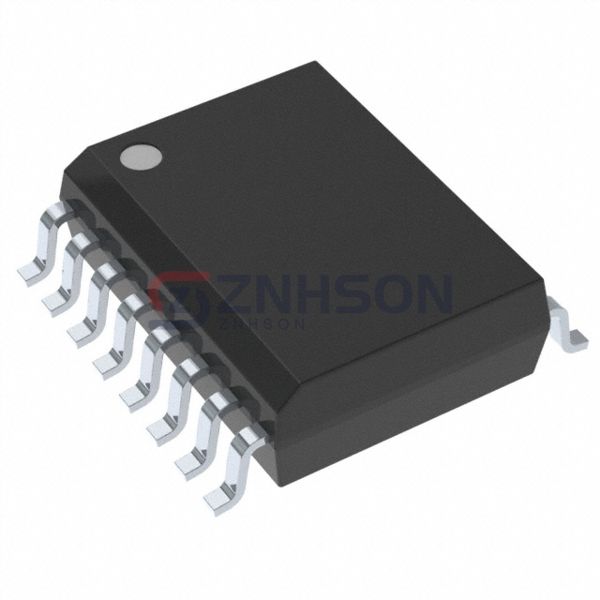

IC SWITCH QUAD SPST 16SOIC
$8.83
Available to order
Reference Price (USD)
1+
$5.70000
10+
$5.12000
47+
$4.84043
141+
$4.19504
282+
$3.97989
517+
$3.57116
1,034+
$3.01182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc.'s SW06GSZ, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The SW06GSZ meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 150Ohm
- Channel-to-Channel Matching (ΔRon): 30Ohm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 700ns, 500ns
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 7pF, 5.5pF
- Current - Leakage (IS(off)) (Max): 60nA
- Crosstalk: -70dB @ 500kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
