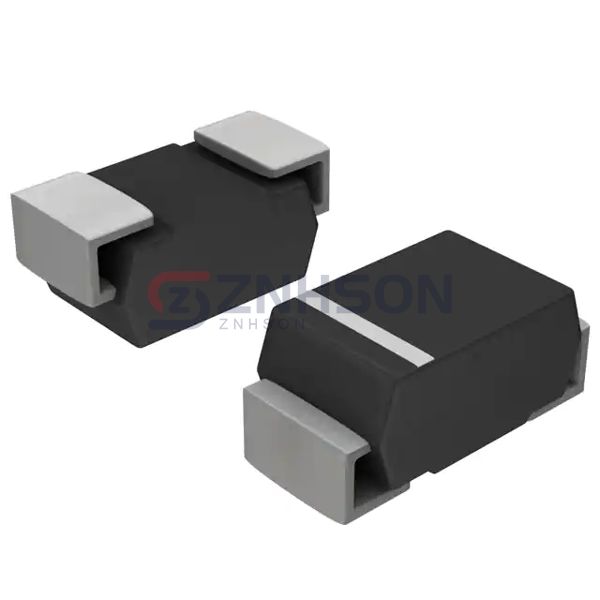

SZ1SMA22AT3G
Littelfuse Inc.
Littelfuse Inc.
TVS DIODE 22VWM 35.5VC SMA
$0.60
Available to order
Reference Price (USD)
5,000+
$0.21988
10,000+
$0.20591
25,000+
$0.20358
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZ1SMA22AT3G TVS diode by Littelfuse Inc. offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the SZ1SMA22AT3G can safeguard solar inverters from overvoltage events. Choose Littelfuse Inc. for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 11.3A
- Power - Peak Pulse: 400W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 540pF @ 1MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
