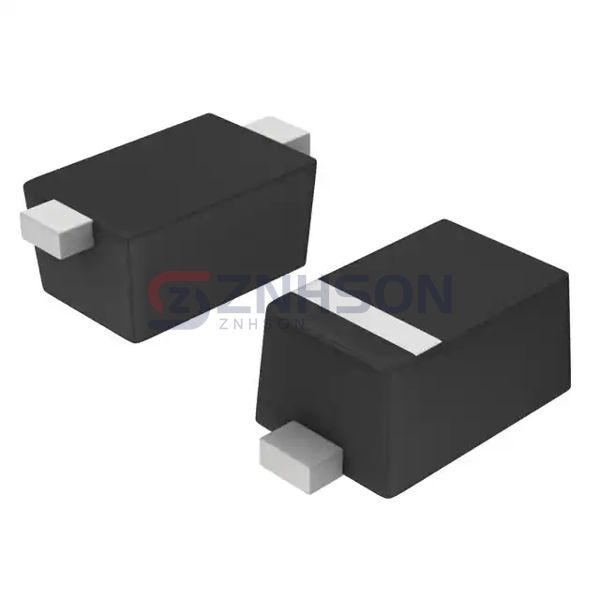

SZESD5Z12T5G
onsemi
onsemi
TVS DIODE 12VWM 25VC SOD523
$0.07
Available to order
Reference Price (USD)
1+
$0.07346
500+
$0.0727254
1000+
$0.0719908
1500+
$0.0712562
2000+
$0.0705216
2500+
$0.069787
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZESD5Z12T5G by onsemi is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SZESD5Z12T5G can secure CAN bus lines in vehicles against voltage spikes. Rely on onsemi for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 14.1V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 9.6A (8/20µs)
- Power - Peak Pulse: 240W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 55pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
