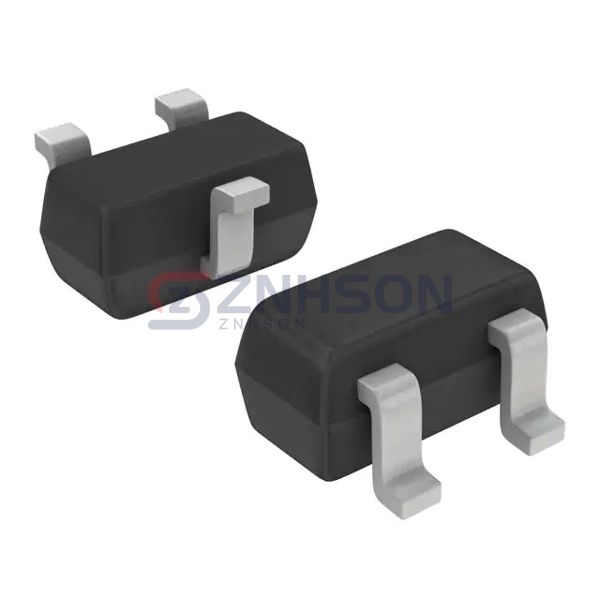

SZESDR0502BT1G
onsemi
onsemi
TVS DIODE 5VWM 15VC SC75 SOT416
$0.49
Available to order
Reference Price (USD)
3,000+
$0.11781
6,000+
$0.11156
15,000+
$0.10219
30,000+
$0.09594
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZESDR0502BT1G TVS diode by onsemi delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the SZESDR0502BT1G can protect GPS modules in vehicles from ESD events. onsemi provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 2
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 5.8V
- Voltage - Clamping (Max) @ Ipp: 15V
- Current - Peak Pulse (10/1000µs): 2A (8/20µs)
- Power - Peak Pulse: 20W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 0.5pF @ 1MHz, 0.25pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
Related Products
Microchip Technology
MSMCJ170CA
Vishay General Semiconductor - Diodes Division
SM15T7V5CA-E3/57T
Diotec Semiconductor
P6SMBJ6.5A
Littelfuse Inc.

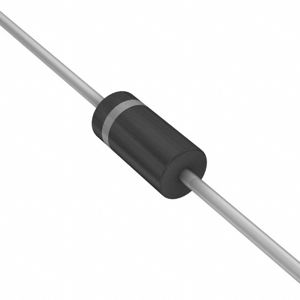

SAC22
Vishay General Semiconductor - Diodes Division
1.5SMC400A-M3/9AT
Microchip Technology
MASMCJLCE14AE3
onsemi
SM36T1G
Taiwan Semiconductor Corporation

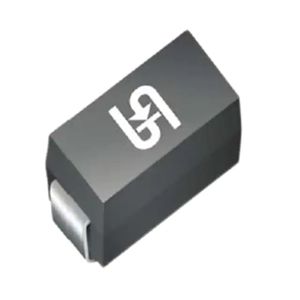

SMAJ13CAHR3G
Vishay General Semiconductor - Diodes Division

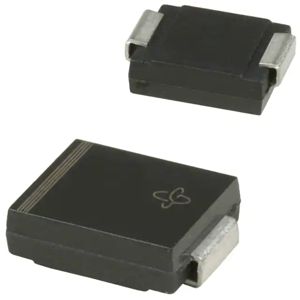

SMCJ6.0CAHM3_A/I
