SZMM5Z12VT5GF
Nexperia USA Inc.
Nexperia USA Inc.

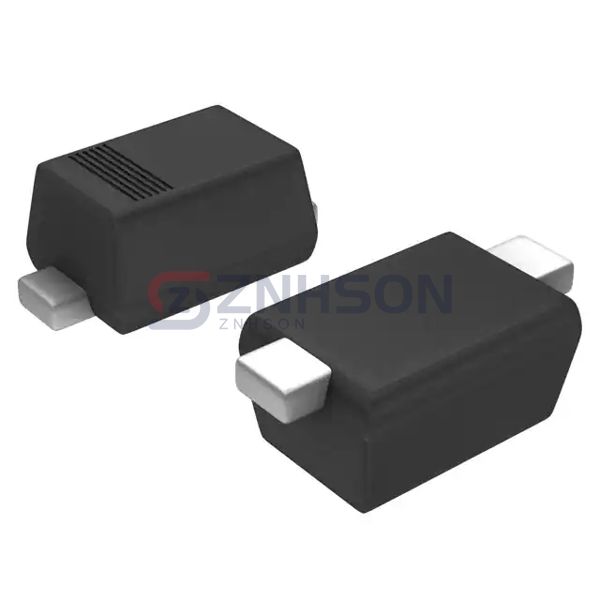

SZMM5Z12VT5G/SOD523/SC-79
$0.33
Available to order
Reference Price (USD)
1+
$0.33000
500+
$0.3267
1000+
$0.3234
1500+
$0.3201
2000+
$0.3168
2500+
$0.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZMM5Z12VT5GF by Nexperia USA Inc. is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the SZMM5Z12VT5GF is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 12 V
- Tolerance: ±2%
- Power - Max: 300 mW
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 8 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 100 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
