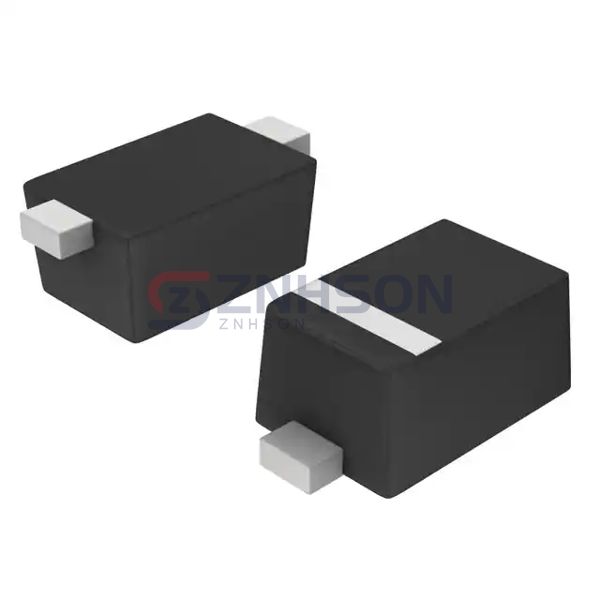

SZMM5Z22VT1G
onsemi
onsemi
ZEN SOD523 LOW IZ REG 0.5W 22V
$0.06
Available to order
Reference Price (USD)
1+
$0.05978
500+
$0.0591822
1000+
$0.0585844
1500+
$0.0579866
2000+
$0.0573888
2500+
$0.056791
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZMM5Z22VT1G by onsemi is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the SZMM5Z22VT1G is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5.68%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 15.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
