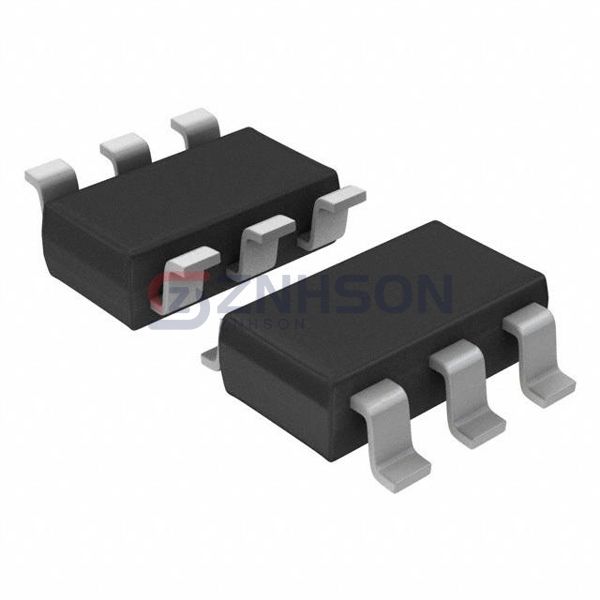

SZNSP2201MR6T1G
onsemi
onsemi
TVS DIODE 5VWM 12VC 6TSOP
$0.56
Available to order
Reference Price (USD)
1+
$0.56000
500+
$0.5544
1000+
$0.5488
1500+
$0.5432
2000+
$0.5376
2500+
$0.532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SZNSP2201MR6T1G TVS diode by onsemi offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the SZNSP2201MR6T1G can safeguard solar inverters from overvoltage events. Choose onsemi for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 2
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 12V
- Current - Peak Pulse (10/1000µs): 25A (8/20µs)
- Power - Peak Pulse: 500W
- Power Line Protection: Yes
- Applications: DVI, USB
- Capacitance @ Frequency: 3pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: 6-TSOP
