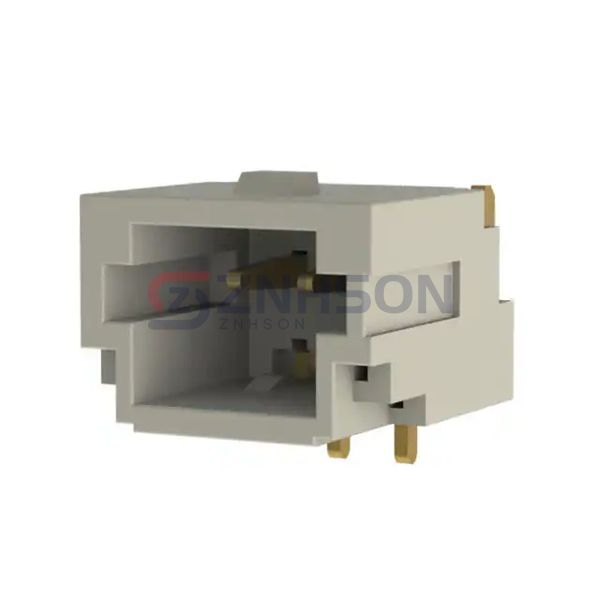

T1M-02-GF-S-V-K-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 2POS 1MM
$3.41
Available to order
Reference Price (USD)
975+
$1.63200
1,950+
$1.39200
2,925+
$1.34400
4,875+
$1.27680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the T1M-02-GF-S-V-K-TR rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the T1M-02-GF-S-V-K-TR ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.167" (4.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3.3A per Contact
- Voltage Rating: 250VAC, 353VDC
Related Products
Preci-Dip
802-10-064-20-001101
Samtec Inc.
EJH-110-01-SM-D-TH
Amphenol ICC (FCI)
10119332-401A04LF
Sullins Connector Solutions
GBC27SABN-M30
Harwin Inc.
M80-8283422
Amphenol ICC (FCI)
78233-204HLF
Samtec Inc.

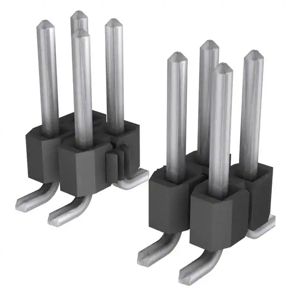

TSM-113-01-TM-DV-TR
