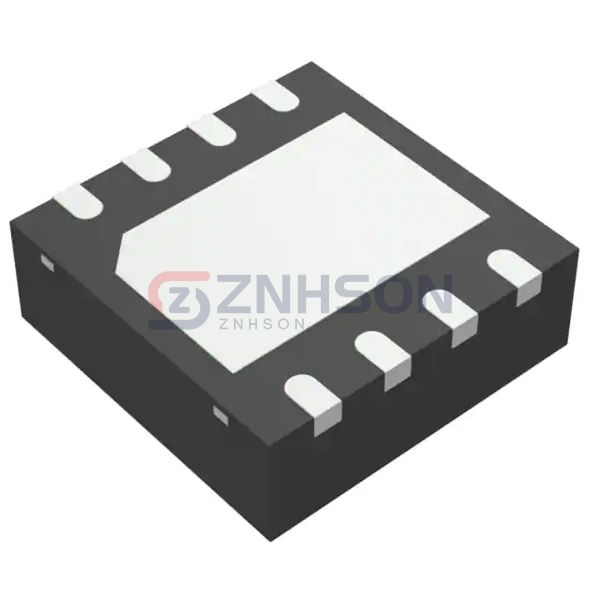

TC4421EMF713
Microchip Technology
Microchip Technology
IC GATE DRVR LOW-SIDE 8DFN
$2.00
Available to order
Reference Price (USD)
3,300+
$1.50380
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's TC4421EMF713 establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the TC4421EMF713 reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 0.8V, 2.4V
- Current - Peak Output (Source, Sink): 9A, 9A
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 60ns, 60ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-DFN-S (6x5)
