TC7SH32F,LJ(CT
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
IC GATE OR 1CH 2-INP SMV
$0.39
Available to order
Reference Price (USD)
3,000+
$0.08100
6,000+
$0.07650
15,000+
$0.06975
30,000+
$0.06525
75,000+
$0.05850
150,000+
$0.05625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TC7SH32F,LJ(CT by Toshiba Semiconductor and Storage sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The TC7SH32F,LJ(CT's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: OR Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.5V
- Logic Level - High: 1.5V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: SMV
- Package / Case: SC-74A, SOT-753
Related Products
Nexperia USA Inc.
74HCT10D,653
Texas Instruments
SN74LVC1G32YEPR
Nexperia USA Inc.
74AHC3GU04DC-Q100H
Nexperia USA Inc.
74LVC2GU04GS,132
Fairchild Semiconductor
NC7ST08L6X
Harris Corporation
CD4071BK3
Nexperia USA Inc.

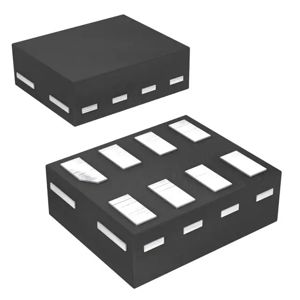

74AUP2G86GN,115
onsemi
MC74LCX32MELG
Texas Instruments

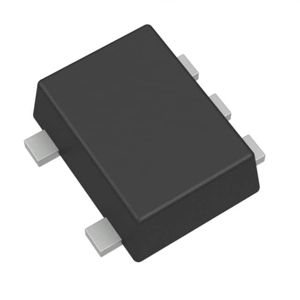

SN74LVC1G14DRLR
