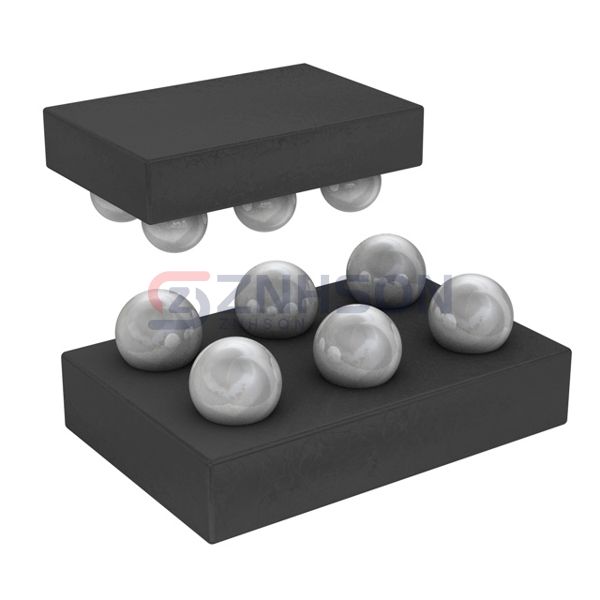

TCK402G,LF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
IC GATE DRVR LOW-SIDE 6WCSPE
$0.64
Available to order
Reference Price (USD)
5,000+
$0.21600
10,000+
$0.20800
25,000+
$0.20000
50,000+
$0.19680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage presents the TCK402G,LF as a revolutionary PMIC - Gate Driver IC engineered for next-gen wide bandgap semiconductors. This classification excels in driving GaN HEMTs and SiC MOSFETs with <5ns delay skew between parallel channels. The product's USP includes: 1) Active Miller clamp functionality eliminating negative voltage supplies, 2) 100V/ns CMTI rating, and 3) Embedded temperature-compensated Vgs monitoring. Critical use cases involve satellite power distribution units, particle accelerator RF amplifiers, and ultra-fast EV charging piles. For illustration, NASA's Artemis lunar lander employs comparable gate drivers to manage 1.2kV SiC modules at 500kHz switching rates in vacuum environments.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: -
- Voltage - Supply: 2.7V ~ 28V
- Logic Voltage - VIL, VIH: 0.4V, 1.6V
- Current - Peak Output (Source, Sink): -
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 0.2ms, 1.5µs
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-UFBGA, WLCSP
- Supplier Device Package: 6-WCSPE (0.80x1.2)
